Multifunctional Smart Data Buoy System for Real-Time Ocean Observation
Real-time ocean observation platform for MetOcean, water quality, navigation safety, and remote monitoring
The 3 m Multifunctional Buoy System is an integrated ocean observation platform designed for long-term marine monitoring. It combines buoy structure, sensor acquisition, power supply, alarm protection, communication, and remote data transmission into one deployable system.
Reliable marine data starts with an integrated buoy platform
For marine monitoring projects, a buoy is not only a floating body. It must carry sensors, protect electrical systems, supply power, transmit data, withstand sea conditions, and remain on station for years.
Dexonmarine designs this system as a complete offshore monitoring platform, helping project owners reduce integration complexity and improve long-term data reliability.
Real-Time Performance / Remote Controllability / Scalable Monitoring / Long-Term Deployment
What this system helps customers solve
Marine projects often face three practical problems:
- Data is delayed or incomplete
- Sensors and communication modules are difficult to coordinate
- Offshore maintenance is expensive and disruptive

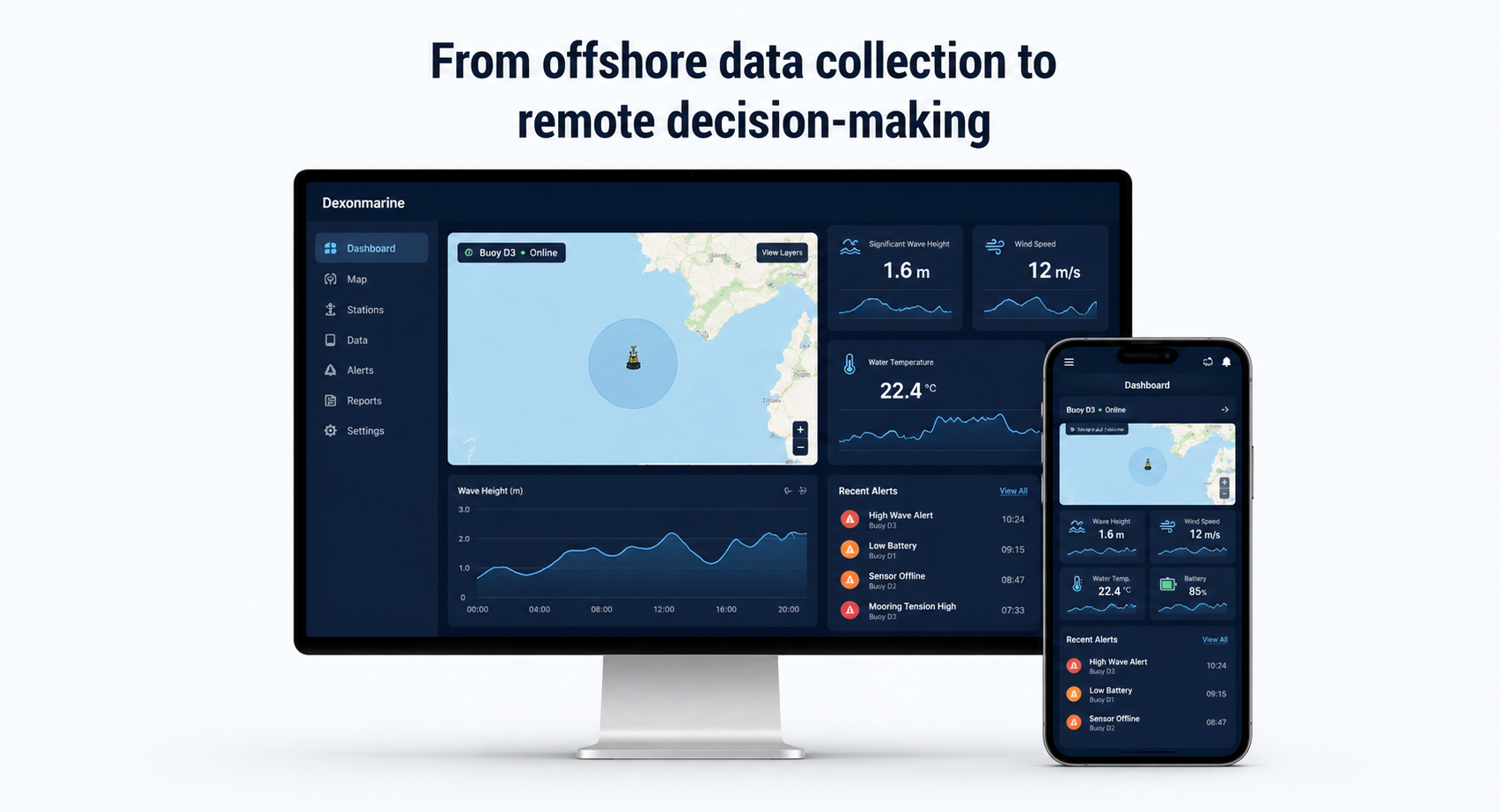

This 3 m buoy system is designed to collect, process, store, and transmit marine data automatically, while allowing remote status checking, command response, and device control from the monitoring center.
A complete system, not just a buoy
| Module |
Function |
| Buoy Body |
Provides buoyancy, load-bearing capacity, equipment space, and structural protection |
| Monitoring Equipment |
Supports meteorological, oceanographic, water quality, communication, and navigation modules |
| Mooring System |
Keeps the buoy positioned and stable through single-point full-chain mooring |
Core advantages
Real-Time Performance
The data logger connects to onboard devices by cable or wireless communication, samples data at scheduled intervals, processes it locally, and uploads it to the monitoring center.
Remote Controllability
Operators can remotely start devices, adjust working schedules, check equipment status, restart programs, download data, and perform command response operations.
Scalable Monitoring
The platform can be expanded with additional sensors such as current velocity, wave height, wave period, wave direction, meteorological sensors, water quality analyzers, and camera modules.
Monitoring capabilities
| Monitoring Category |
Available Parameters |
| Meteorological |
Wind speed, wind direction, temperature, humidity, barometric pressure, rainfall, visibility |
| Oceanographic |
Wave height, wave period, wave direction, wave spectrum, current speed, current direction, ADCP profiling |
| Water Quality |
DO, pH, conductivity, turbidity, nutrients, chlorophyll, blue-green algae |
| Visual Monitoring |
Panoramic camera for sea surface and ecological observation |
| Navigation Safety |
AIS marine lantern, radar reflector, AIS base station optional |
| Alarm Monitoring |
Hatch opening, water ingress, buoy movement, abnormal status alerts |
Built for long-term offshore deployment
The buoy body uses a 3 m steel structure with a sealed electrical control compartment. It is designed for corrosion resistance, UV resistance, freeze-crack resistance, and long-term station keeping.
Key platform features:
- 3000 mm ± 100 mm buoy diameter
- Steel buoy body
- Maximum payload ≥ 4000 kg
- Reserve buoyancy ≥ 3 t
- Single-point full-chain mooring
- Continuous on-station time ≥ 3 years
- Average maintenance cycle ≥ 3 years
- IP67 protection rating
Intelligent electrical and data system
The buoy electrical system integrates five core subsystems:
- Observation acquisition
- Communication system
- Alarm system
- Power supply
- Data logger
The data logger manages scheduled wake-up, self-checking, data acquisition, data storage, encoding, sensor commissioning, power management, and two-way communication.
This allows the buoy to operate in a low-power automatic cycle while maintaining remote data transmission and intelligent control.

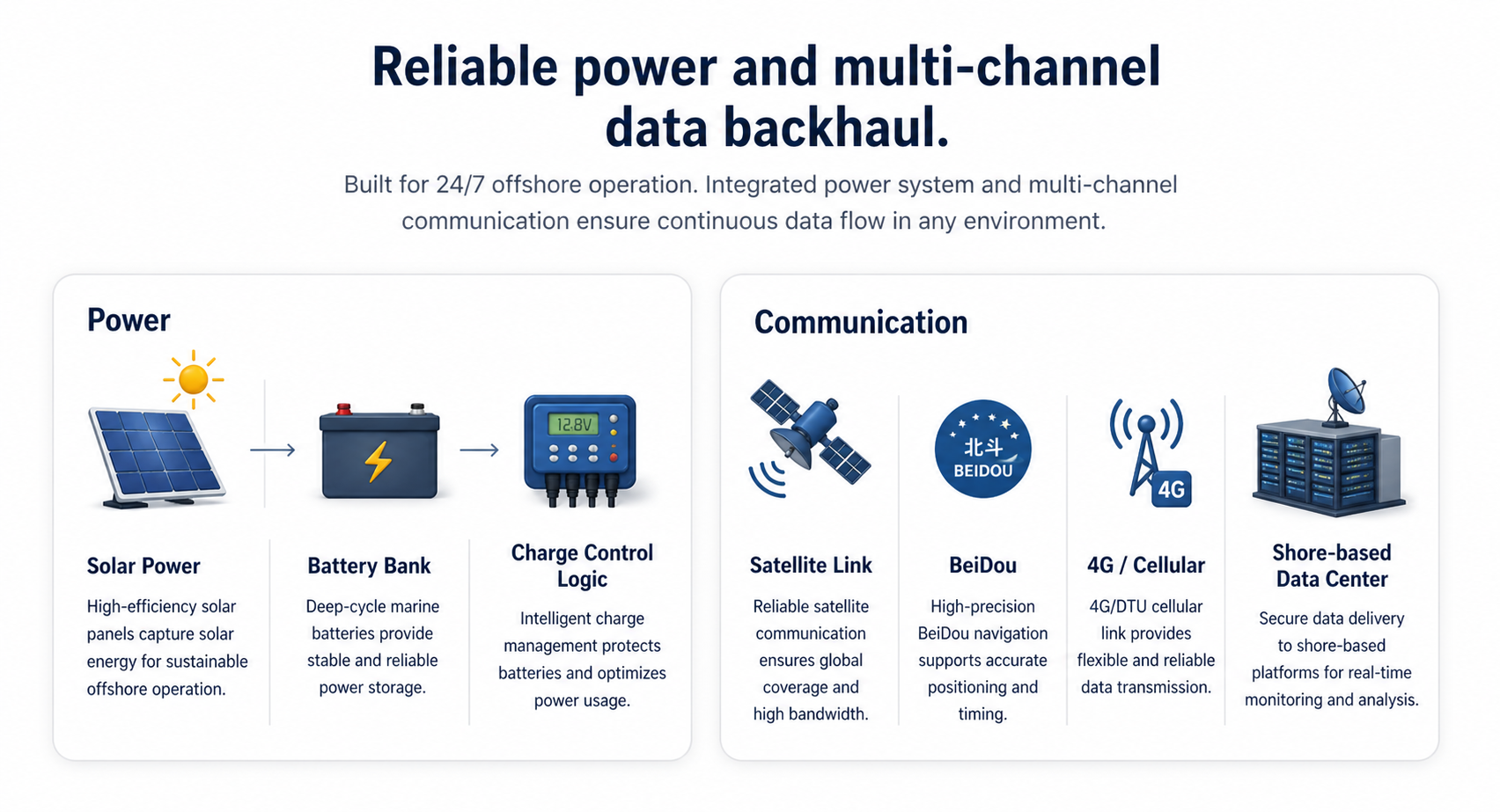

Power and communication design
The buoy uses a solar-based power supply system with battery storage and charge/discharge control. The charge controller helps prevent over-discharge, overcharge, abnormal voltage, and abnormal current conditions.
Communication options include:
- BeiDou satellite communication
- 4G / DTU mobile network
- Signal enhancement options
- Redundant data backhaul to shore-based monitoring center
This makes the platform suitable for coastal waters, inland lakes, offshore areas, and locations with limited mobile network coverage.
Why Dexonmarine
Most suppliers provide individual sensors or buoy structures. Dexonmarine focuses on system-level marine monitoring platforms.
The value is not only in the buoy body, but in how the buoy, sensors, power system, data logger, communication modules, alarm system, AIS functions, and remote platform work together.
For contractors, integrators, and project owners, this reduces coordination risk and makes the system easier to deploy, operate, and expand.
Product Attributes
| Attribute |
Description |
| System Type |
Integrated Ocean Observation Buoy |
| Buoy Diameter |
3000 mm ± 100 mm |
| Buoy Material |
Steel Structure |
| Deployment Mode |
Single-Point Full-Chain Mooring |
| Monitoring Data |
Meteorological, Oceanographic, Water Quality, Visual, AIS, Alarm Data |
| Power System |
Solar Power + Battery + Charge/Discharge Control |
| Communication |
BeiDou Satellite / 4G DTU / Signal Enhancement Optional |
| Data Access |
Shore-Based Monitoring Center / Remote Data Platform |
| Data Output |
Real-Time Data + Historical Records |
| On-Station Time |
≥ 3 Years |
| Maintenance Cycle |
≥ 3 Years |
| Application |
Ocean Observation, Coastal Monitoring, Port Monitoring, Offshore Engineering, Marine Research |
| Customization |
Sensors, Communication, Power, Mooring, Data Platform, AIS, Alarm System |
| Project Support |
Engineering Design, Configuration, Deployment Guidance, Long-Term Operation Support |
